We support

Manufacturing Services: Custom manufacturing based on drawings or samples
Material Range: Stainless steel, copper & aluminum alloys, plastics
Processing Capabilities: Machining, metal forming, surface finishing
Applications: Curtain wall fittings, equipment components, fluid connectors and other precision machined parts
More

Contact Us

Please contact us directly so we can evaluate how to support your manufacturing requirements.
We look forward to working with you.
More

Recent projects

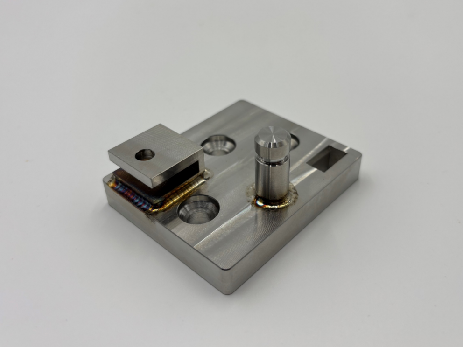

Structural Component -65 X 55 X 30 mm
Material：Stainless steel 316L

Manufactured through machining of multiple sub-components followed by welding into a complete structure. Final machining is then carried out to ensure critical dimensions and assembly relationships. Post-weld surface treatment removes heat-affected marks and restores a consistent overall appearance.

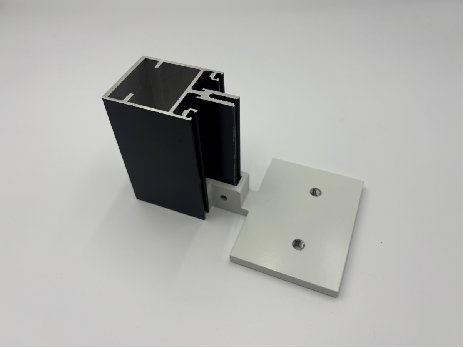

Structural Component -120 X 110 X 27 mm
Material：Stainless steel 316L

Fully CNC machined component. The profile connection area is processed by wire EDM to achieve stable mating geometry and accurate edge definition. Powder coating is applied to improve weather resistance and overall appearance.

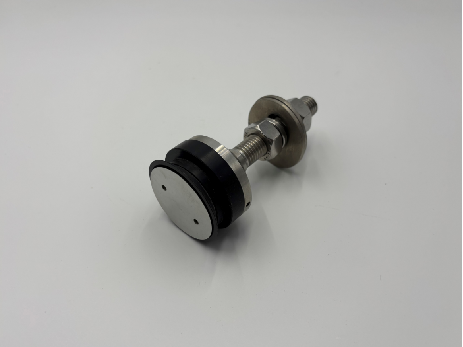

Point Fixing Routel - Ø50 × 115 mm
Material：Stainless steel 316L

Point-supported glass façade connector manufactured through precision CNC machining. Particular attention is given to concentricity, thread accuracy and surface condition, making it suitable for connection and support applications in architectural curtain wall systems.

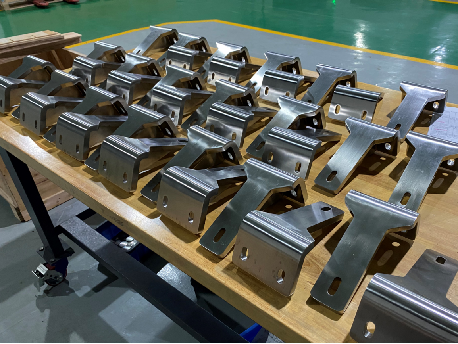

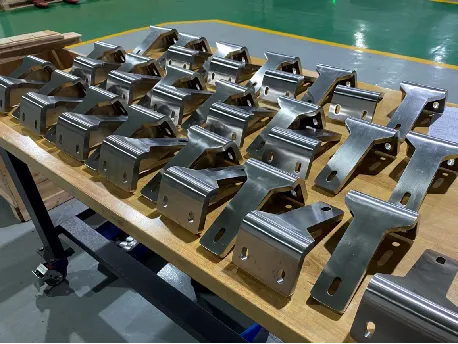

Angle Support Bracket - 235 × 135 × 100 mm
Material：duplex stainless steel 2205

Medium-sized angle support component formed from 15 mm thick plate bending, with welded reinforcement ribs to improve structural rigidity. The overall surface is brushed finished, while welded areas are carefully refinished without obvious oxidation marks or surface damage.

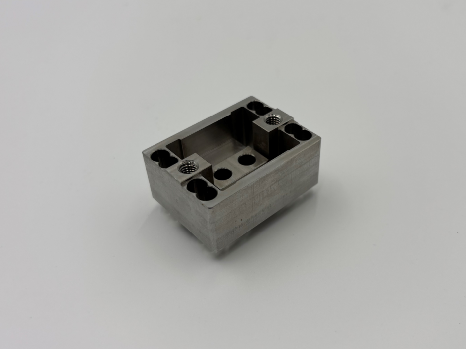

Load Cell Elastic Element - 40 × 30 × 22.5 mm
Material：stainless steel 17-4PH

Elastic structural component used in force sensing systems. The thinnest section is 0.85 mm with a parallelism requirement of 0.02 mm, including multiple fine-detail features. After heat treatment, hardness is controlled between HRC36–45 to balance strength and elastic response performance.

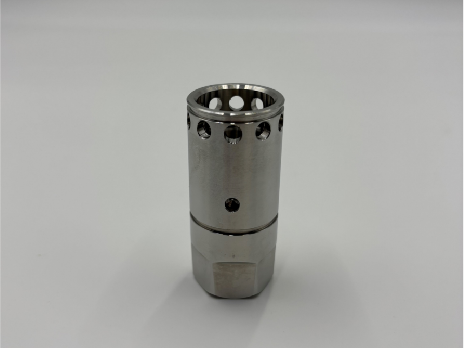

Fluid Connector Housing - Ø28.45 × 61.6 mm
Material：Stainless steel 316L

Manufactured from solid round bar using turn-mill combined machining. The component contains more than 50 detailed features, including sealing surfaces, threads, chamfers, hole patterns and functional profiles, making it suitable for high-demand fluid connection systems.
Automotive Mounting Component - Ø85 × 101.2 mm
Material：steel 45 #

Automotive structural mounting component manufactured from medium carbon steel. Production focuses on dimensional accuracy, mounting interface quality and structural strength for load-bearing and connection applications.

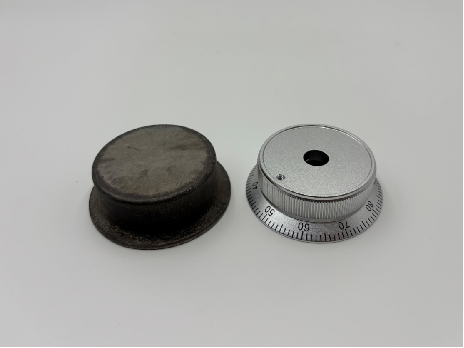

Control Handwheel - Ø57 × 20 mm
Material：aluminum alloy 6063-T6

The aluminum bar is first forged into a near-net-shape blank, followed by precision machining to complete appearance and assembly features. The surface is anodized, with strict control over the position, depth and consistency of the engraved scale markings.

Production Capacity

CNC lathe

For axis, tube, joint, and screw parts processing. Can process outer diameter, inner hole, end face, screw, drill, and thread. Some equipment have a mill and drill capability, reducing multiple clamping and improving dimension consistency. Typical processing range: maximum Ø300 × 300mm

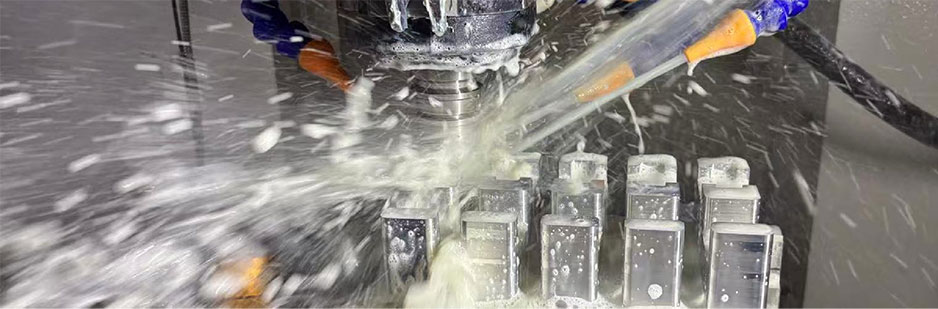

CNC machining center

Suitable for processing square parts, flange parts, connecting seats, and irregular structural parts. It can perform flat milling, hole series machining, tapping, countersunking, and multi-faceted positioning machining, suitable for the production of parts with positional requirements or complex structures. Typical processing range: maximum 800 × 500 × 550mm

Hread Forming

Capable of automatic thread tapping and rolling processing, suitable for mass production of internal and external threaded parts. The rolling process obtains thread profiles through plastic forming, which can improve the surface quality and local strength of threads, and increase production efficiency. Scope of application: M2~M30 (316L)

Assembly Packaging

Parts matching, basic assembly, grouping and packaging, and label recognition can be carried out according to project requirements. For export or engineering projects, they can be organized by batch, region, or installation logic to improve on-site efficiency and reduce mixing risks.

Inspection And Testing

Process control of critical dimensions and functional features is achieved through image measurement, dimensional measurement, thread inspection, material analysis, and hardness confirmation. Double standard quality control runs through the processing process, not just limited to final inspection.

Outsourcing

For electroplating, anodizing, heat treatment, and other special processes, matching treatment can be carried out through stable cooperative resources. We arrange and track the progress, quality, and delivery time of the relevant processes in a unified manner, so that customers can complete the complete delivery process without having to separately connect with multiple suppliers.
